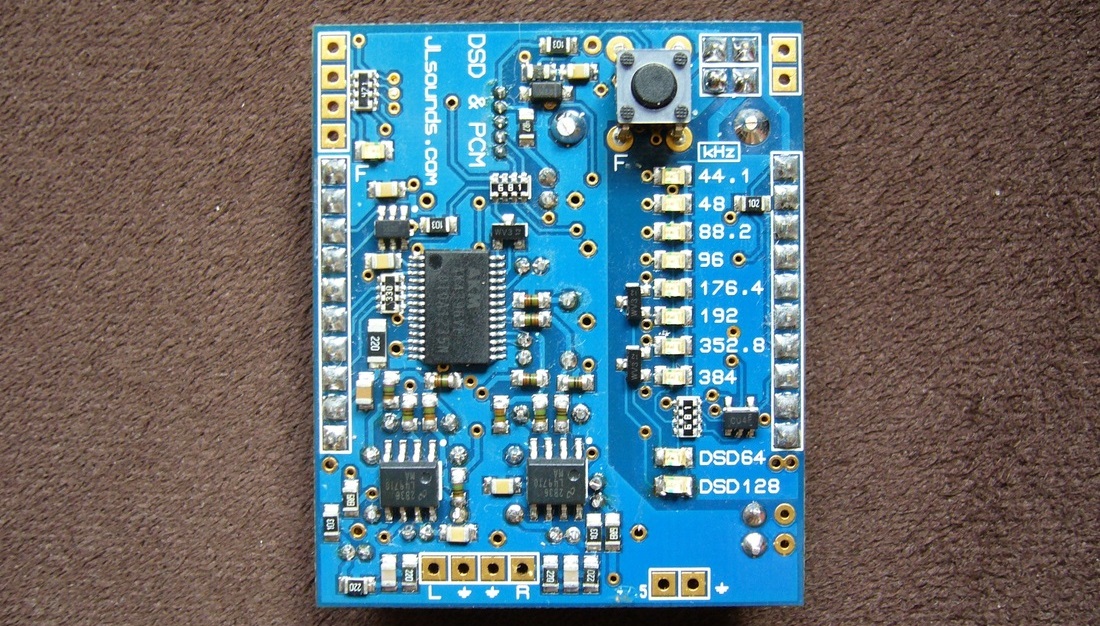

Features of AK4396 board

-            AK4396 can playback DSD and PCM audio data, as Fs from 44.1 kHz to
             192kHz and DSD64 according to its’ datasheet; Proprietary solution for
              352.8 kHz, 384 kHz, 705.6kHz, 768kHz and DSD128

-            Configuration from PCM to DSD data format and back, is done by PIC1823
             microcontroller, which 0.5sec after his work is done, is putted on sleep mode
             not to insert disturbances

-            Indicates input sampling rates of PCM and DSD
-            AK4396 accepts 16-, 20-, and 24-bit PCM audio data
-            Button for selecting digital filter setting
-            Reconstruction filter is made of MELF Vishay resistors and polyester
             capacitors
-            This board is made especially for I2SoverUSB board, but of course one can
                  use it separately
-            Dimensions: (LxWxH): 51.0 x 42.3 x 14.0 mm

-
            For more information click here
€ 49.90

All items are in limited stock. Dispatch time is up to 3 weeks from the moment you placed the order. If item is in stock, we ship within 3 business days. Please contact us for available quantities.

Prices exclude VAT. If you're outside the EU, we won't charge you VAT.
